I have been working on a megasquirt/l-jetronic mod and i now have some trouble with the fuel pump wiring.

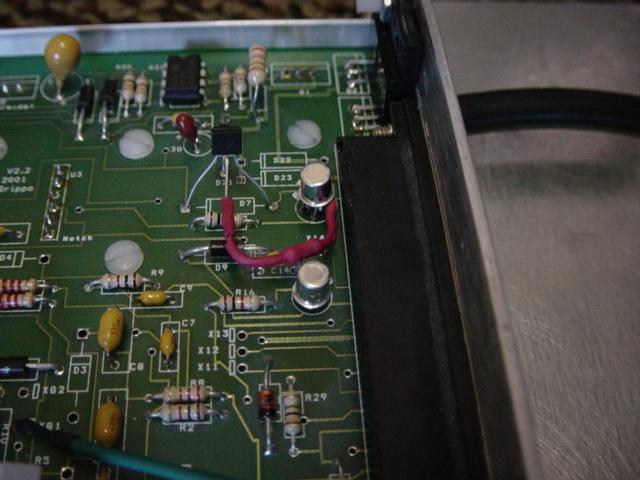

Could someone please check the wiring on the picture below? Note, it is not quite done yet...
It step 59 of SteveR´s instructions (see link below) that i have trouble with.

Also check the fuel pump wiring diagram, linked below.





http://www.alfagtv6.com/MegaSquirt/MS_l ... _drive.pdf

http://www.alfagtv6.com/MegaSquirt/Megasquirt.htm


Thanks!

[David]

Hi Jalamari,

Here's a photo & diagram that may help. You need to mount them this way to ensure the fuel pump shuts off if the engines stalls, does not start after a few seconds or if the ignition is on without the engine running.

Regards
David

[Jalamari]

Hi i already get the car run, but fuel pump spin all the time when the ignition is on. Have to check the wiring. Thank you at the diagram and picture.

Jalamari
