I'm looking to do some major re-wiring of my race car and would love to have a diagram of what it looked like when it rolled out the factory doors.
Does anyone have one to share?
Wanted: Alfetta GTV -77 wire harness diagram.
Mats Strandberg
-Scuderia Rosso- Now burned to the ground...
-onemanracing.com-
-Strandberg.photography-
GTV 2000 -77 - Died in the fire.
155 V6 Sport -96 - Sold!
-Scuderia Rosso- Now burned to the ground...
-onemanracing.com-
-Strandberg.photography-
GTV 2000 -77 - Died in the fire.
155 V6 Sport -96 - Sold!
Re: Wanted: Alfetta GTV -77 wire harness diagram.
Hi Mats,
I have these pages from Haynes manual...
I hope they'll be useful for you..
Sorry if I made a fault uploading this...
Diego
I have these pages from Haynes manual...
I hope they'll be useful for you..
Sorry if I made a fault uploading this...
Diego
- Attachments
-

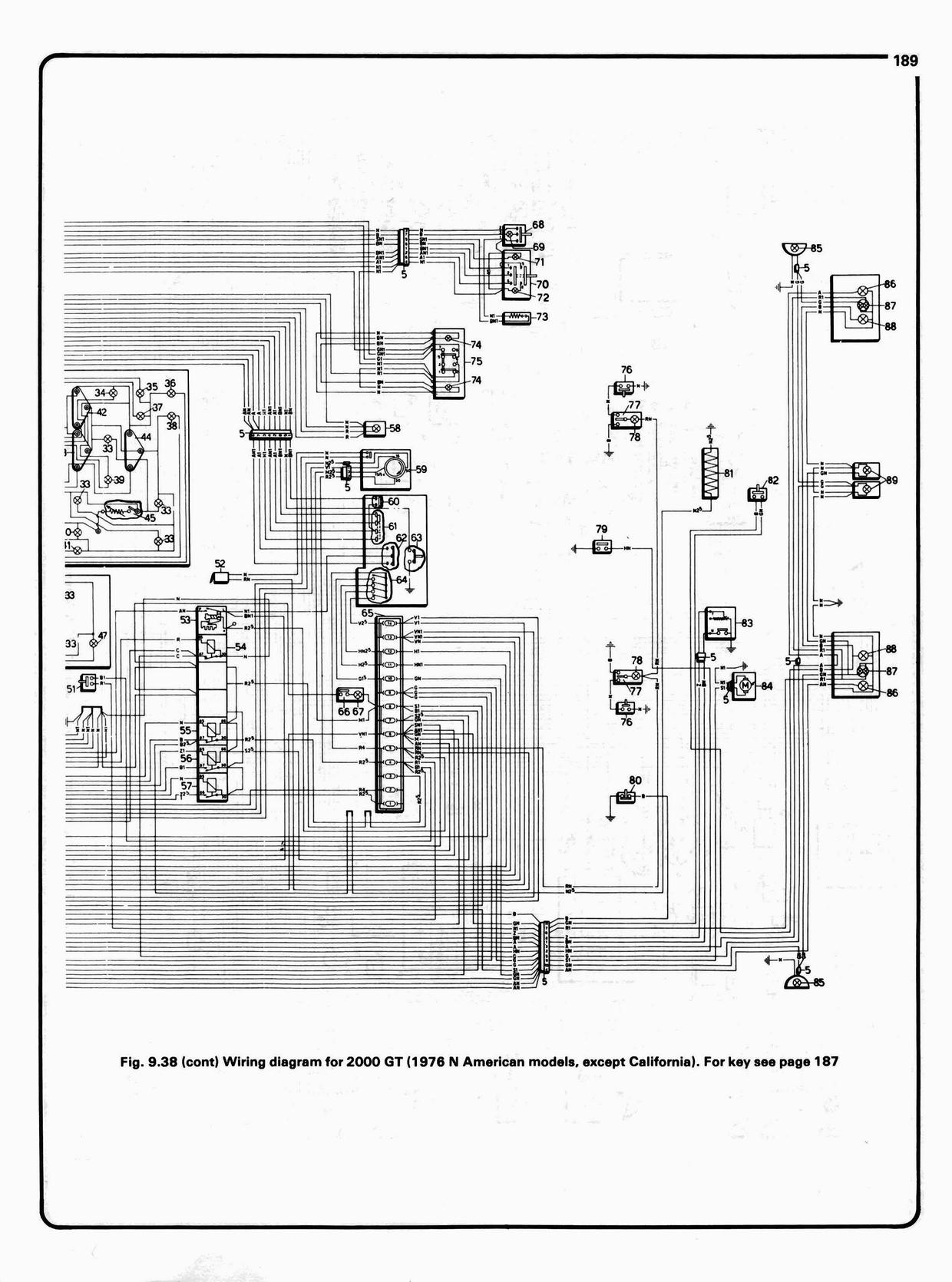

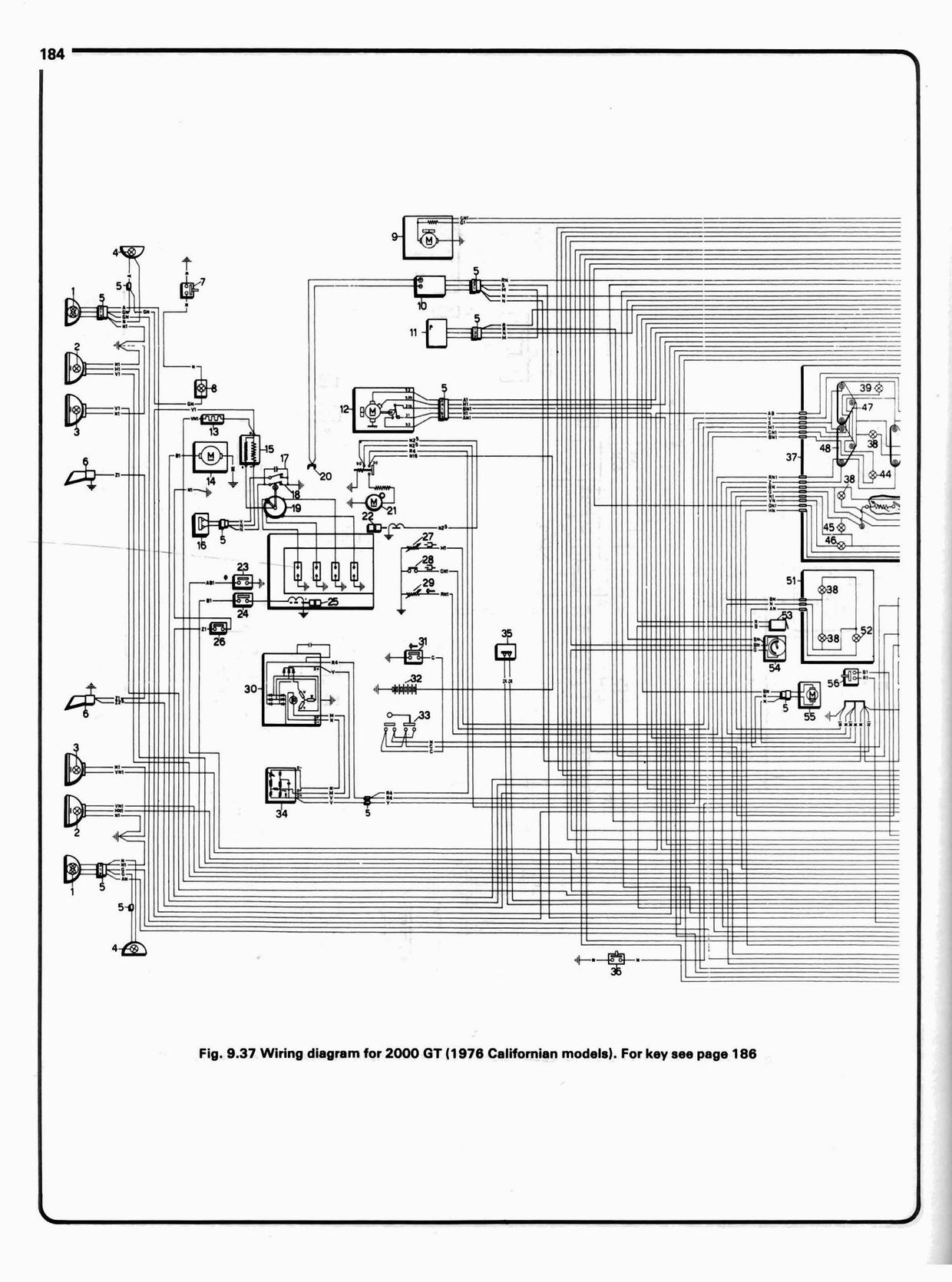

- alfetta_wiring_Page_27.JPG (217.78 KiB) Viewed 4028 times
-
- alfetta_wiring_Page_26.JPG (225.39 KiB) Viewed 4028 times
-
- alfetta_wiring_Page_25.JPG (113.44 KiB) Viewed 4027 times
-
- alfetta_wiring_Page_06.JPG (86.78 KiB) Viewed 4038 times
-
- alfetta_wiring_Page_01.JPG (104.03 KiB) Viewed 4037 times
Last edited by damtech on Wed Feb 04, 2009 8:55 am, edited 1 time in total.
Re: Wanted: Alfetta GTV -77 wire harness diagram.
Others...
- Attachments
-
- alfetta_wiring_Page_24.JPG (127.55 KiB) Viewed 4026 times
-
- alfetta_wiring_Page_23.JPG (206.45 KiB) Viewed 3997 times
-
- alfetta_wiring_Page_22.JPG (217.03 KiB) Viewed 3994 times
-
- alfetta_wiring_Page_05.JPG (192.13 KiB) Viewed 3995 times
-
- alfetta_wiring_Page_04.JPG (208.07 KiB) Viewed 3995 times
Re: Wanted: Alfetta GTV -77 wire harness diagram.
Fantastic!
I wonder if there are any changes to the Cali model compared to the Swedish one. Spica? Other emission stuff? A/C?
Anyway, thanks a lot!
If anyone have some more stuff that might show a different layout please feel free to post or tell me what's different.
If you have something different and can't be bothered to look through it to search for changes please post if and I'll have a look at it.
I wonder if there are any changes to the Cali model compared to the Swedish one. Spica? Other emission stuff? A/C?
Anyway, thanks a lot!
If anyone have some more stuff that might show a different layout please feel free to post or tell me what's different.
If you have something different and can't be bothered to look through it to search for changes please post if and I'll have a look at it.
Mats Strandberg
-Scuderia Rosso- Now burned to the ground...
-onemanracing.com-
-Strandberg.photography-
GTV 2000 -77 - Died in the fire.
155 V6 Sport -96 - Sold!
-Scuderia Rosso- Now burned to the ground...
-onemanracing.com-
-Strandberg.photography-
GTV 2000 -77 - Died in the fire.
155 V6 Sport -96 - Sold!
Re: Wanted: Alfetta GTV -77 wire harness diagram.
hmm... sincereley I don't know...

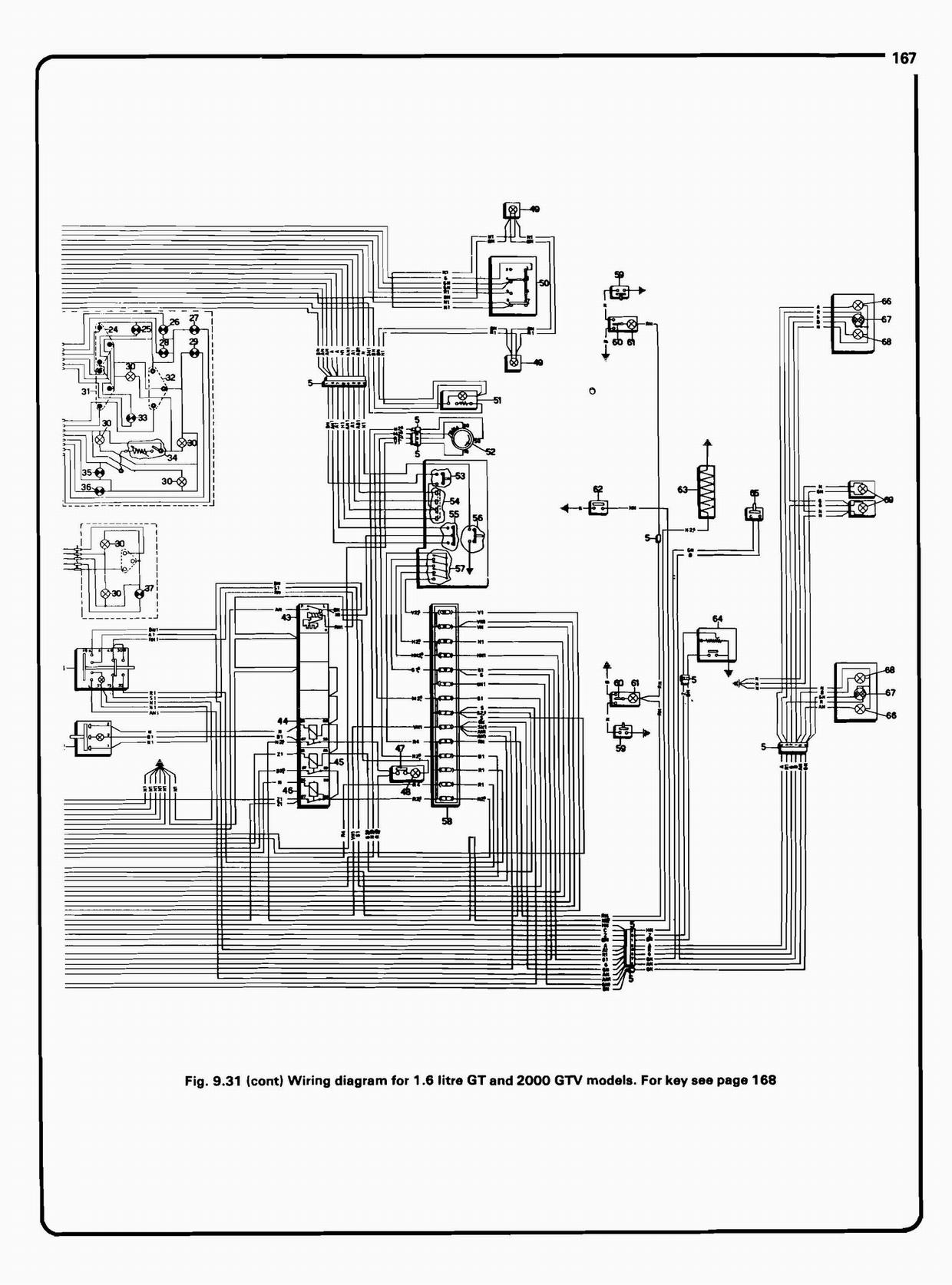

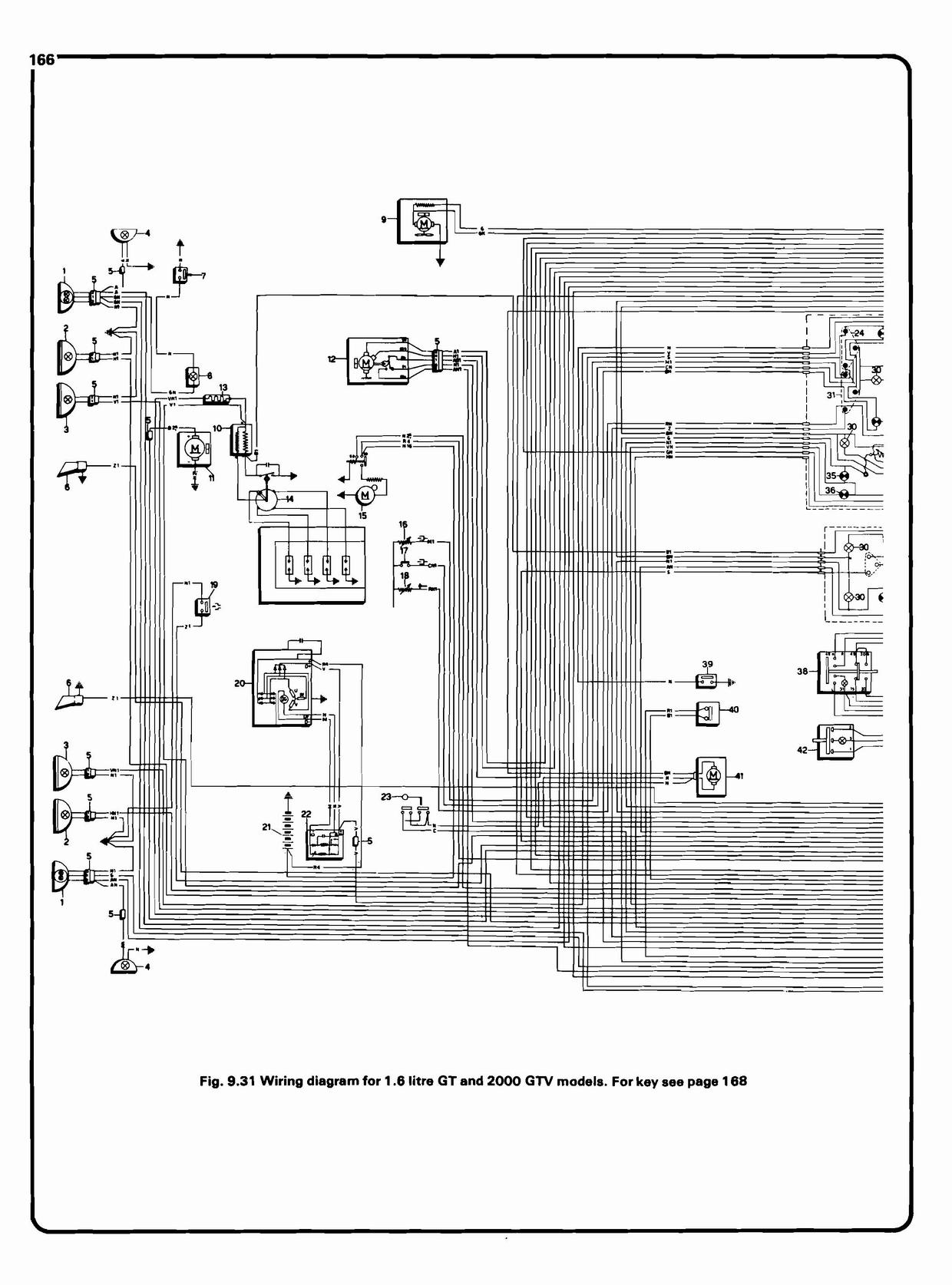

maybe fig. 9.31 (standard, non-californian, export models) it's closer to your car...
does your car have emission reduction systems?
maybe fig. 9.31 (standard, non-californian, export models) it's closer to your car...
does your car have emission reduction systems?
Re: Wanted: Alfetta GTV -77 wire harness diagram.
damtech wrote:hmm... sincereley I don't know...
maybe fig. 9.31 (standard, non-californian, export models) it's closer to your car...
does your car have emission reduction systems?
No, nothing.
It will have a catalytic converter when I'm done with it though due to racing regulations. It's legal to drive with carbs and just enough exhaust to quiet it down a bit on the street but needs a catalytic converter to be legal for race.
Retards...Mats Strandberg
