Re: Project 2 : front mount SA GTV 3.0 - Sei diff

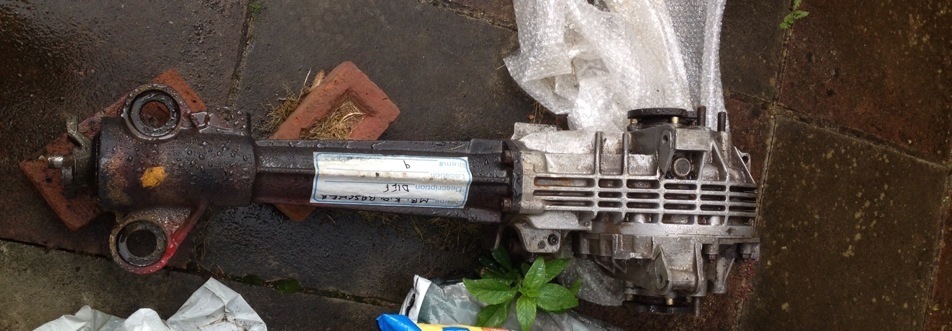

Just been doing some chassis and Dedion checks from the Alfa sedan to understand their original prop solution . Note I have the Alfa sei Dedion crossmember in my GTV . Matts I have been listening so I dug out the books to see the three d view .

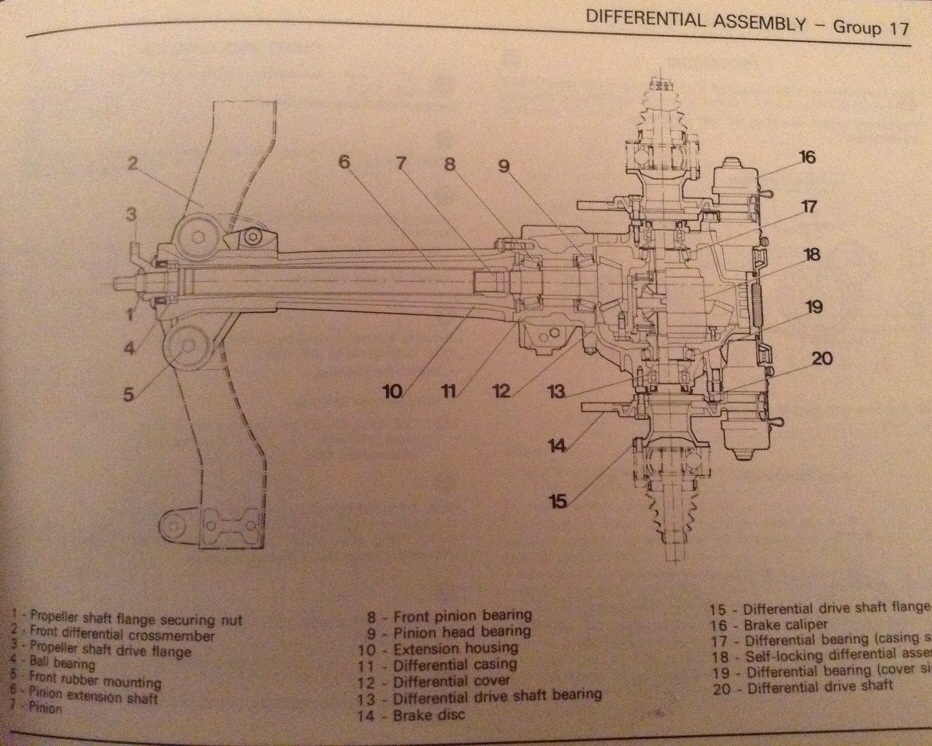

So from measurements the Sei diff sits parallel to the centre line of the car by 75mm to the right side . Also checked the side shafts are of equal length but you can see clearly from drawing the offset of the brake discs . This is viewed from Plan View ie looking down through the roof of the car . The factory drawings shows cross member bolts are exactly 331 mm to centre which concludes the centre of Dedion is spot on centre to the car . You might say this is obvious but remember Alfa does offset certain parts .
This is what I have replicated in my car .
On my GTV the engine sits dead centre with the front yoke centre 30 mm higher than diff . I am fortunate to be able to adjust on my diff as built in space to shim .
Summary my prop is out of alignment in two views but it is parallel . This definitely counts out the use of using one Uj hence the monster vibration from phasing .

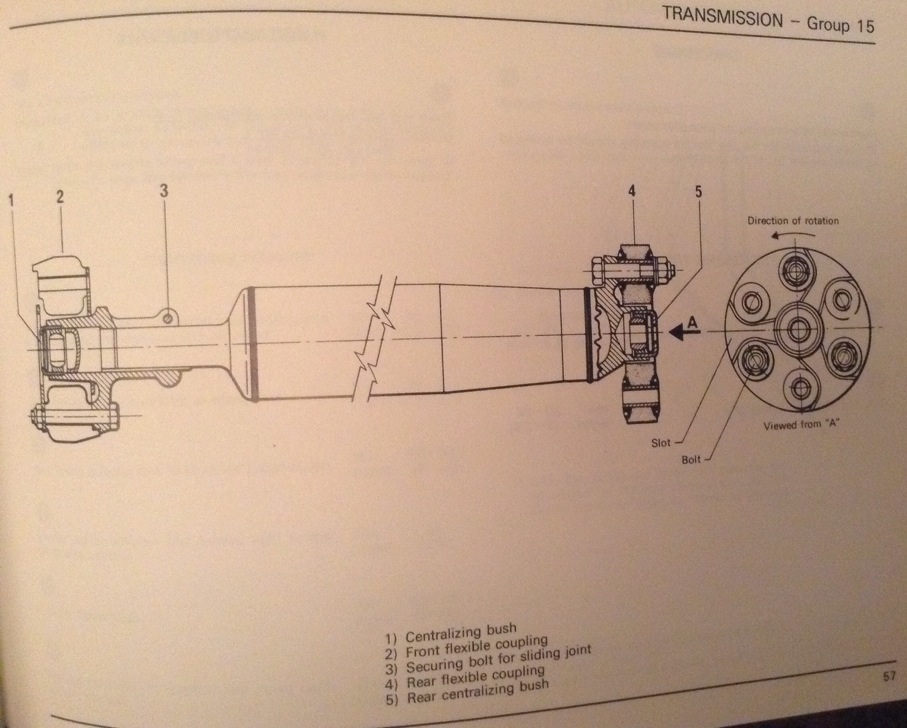

The Sei ( 119 ) uses two rubber couplings with a slider on the front so Alfa engineers proved this was the best solution for smoothness back then with the miss alignment as Uj were an option like on the 105 series .
Pity I never had a sei prop when I started this projects but I still probably would not use those old designed couplings anyway . I will keep the BMW one front at this stag as its proven to be bullet proof .
So from measurements the Sei diff sits parallel to the centre line of the car by 75mm to the right side . Also checked the side shafts are of equal length but you can see clearly from drawing the offset of the brake discs . This is viewed from Plan View ie looking down through the roof of the car . The factory drawings shows cross member bolts are exactly 331 mm to centre which concludes the centre of Dedion is spot on centre to the car . You might say this is obvious but remember Alfa does offset certain parts .
This is what I have replicated in my car .
On my GTV the engine sits dead centre with the front yoke centre 30 mm higher than diff . I am fortunate to be able to adjust on my diff as built in space to shim .
Summary my prop is out of alignment in two views but it is parallel . This definitely counts out the use of using one Uj hence the monster vibration from phasing .
The Sei ( 119 ) uses two rubber couplings with a slider on the front so Alfa engineers proved this was the best solution for smoothness back then with the miss alignment as Uj were an option like on the 105 series .
Pity I never had a sei prop when I started this projects but I still probably would not use those old designed couplings anyway . I will keep the BMW one front at this stag as its proven to be bullet proof .
